PR003 - ABS Interface

The ABS interface takes the signal produced by an ABS Wheel Speed Sensor and converts it into a format that can be used to operate a Monit rally computer. It will work with most types of two wire sensors that generate an analogue output signal.

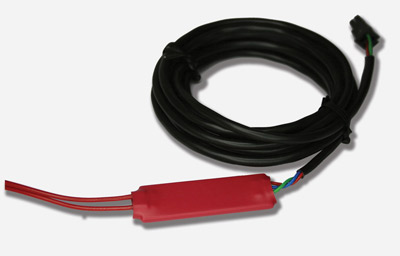

Monit PR003 ABS sensor interface

Technical Specifications

Hysteresis Voltage 200mV
Max. Input Frequency 4kHz
Input Impedance 100Kohm
Operating Temperature -20 to 125 deg C

Support Documents

(EN) PR003 Installation Guide.pdf (52kB)

(FR) PR003 Installation Guide.pdf (53kB)

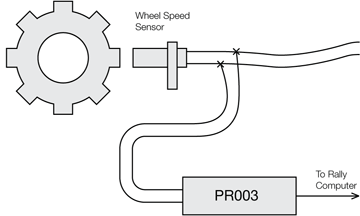

Wiring info for Monit PR003 ABS sensor interface

Note:

The interface can only be used with ABS wheel speed sensors that have been disconnected and are no longer used by the vehicle's safety systems. It must not be fitted to any vehicle that still uses its ABS system.
